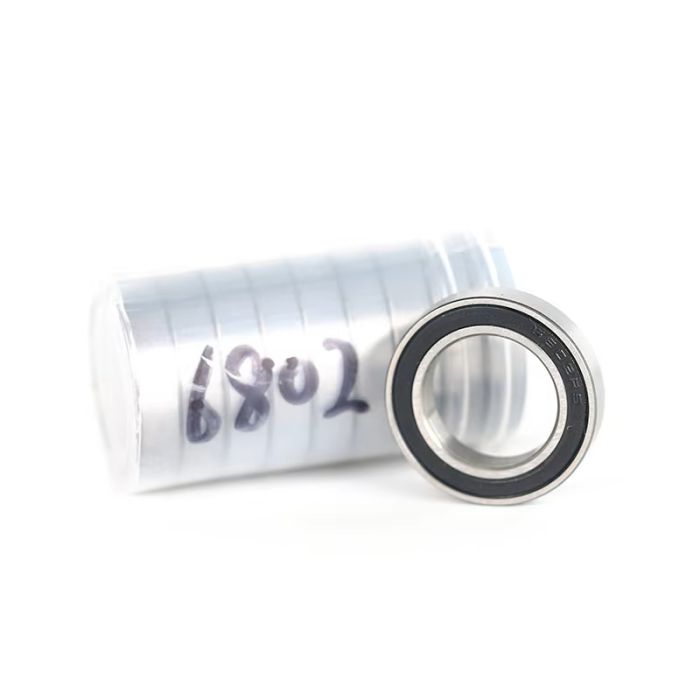

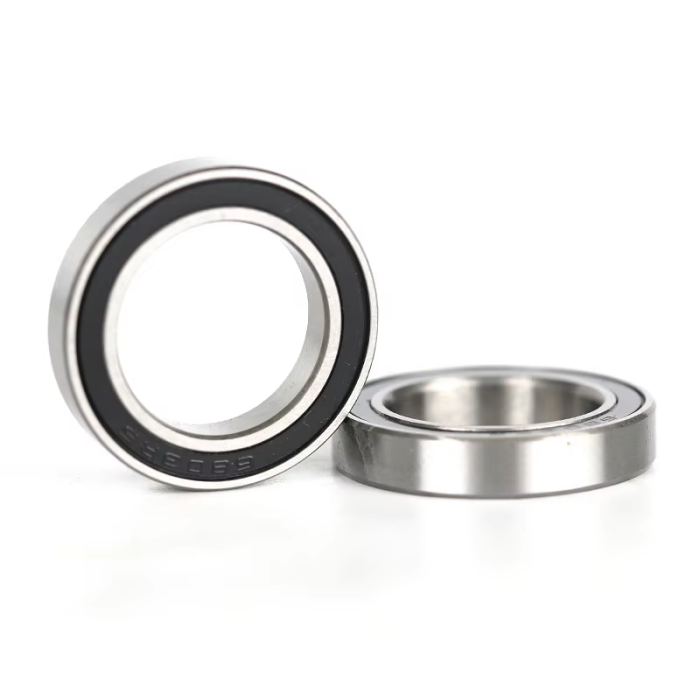

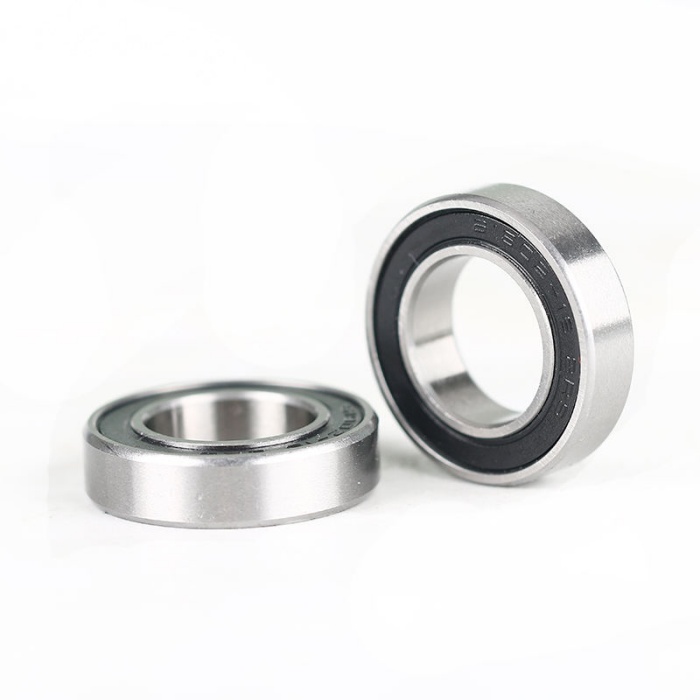

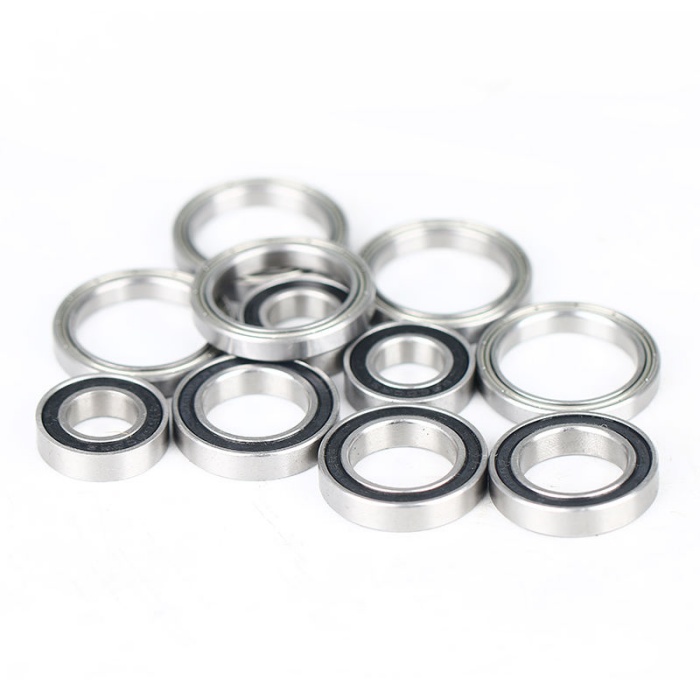

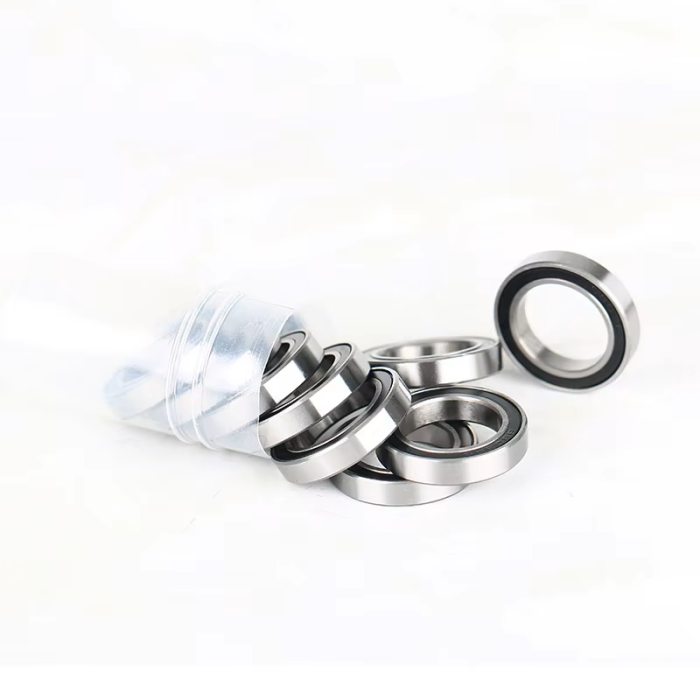

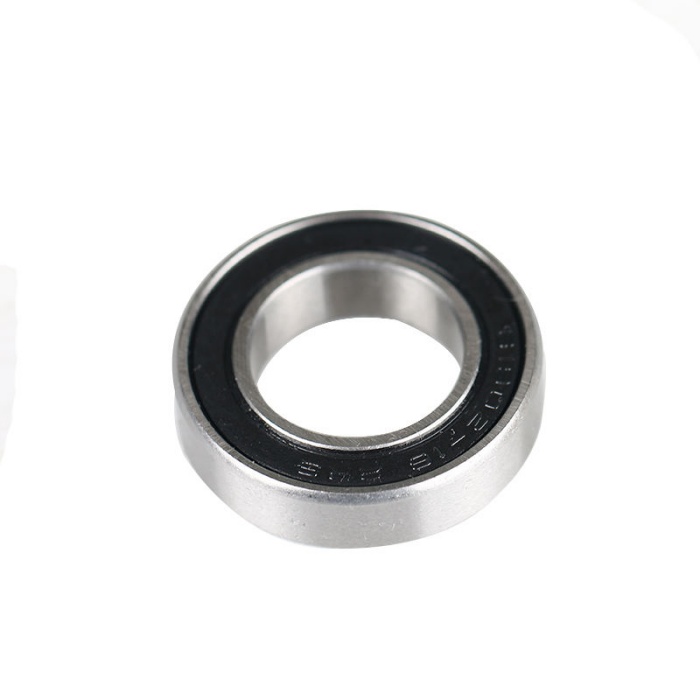

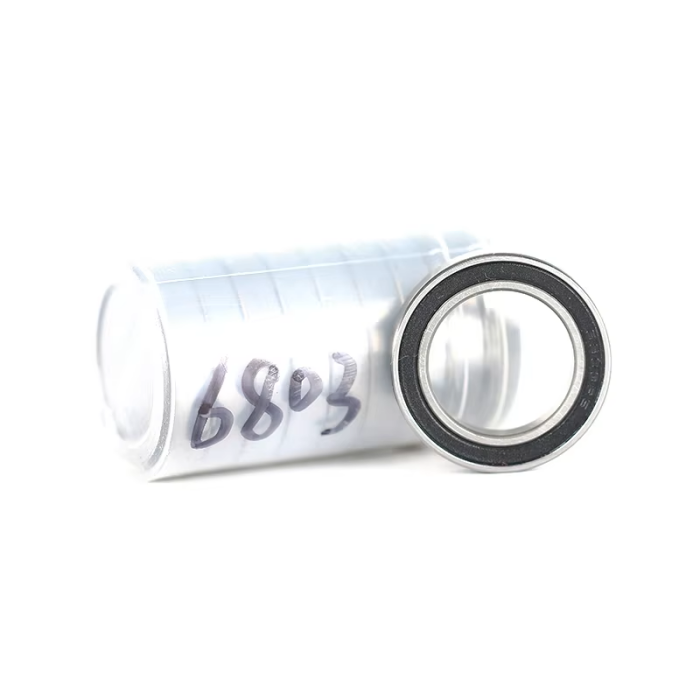

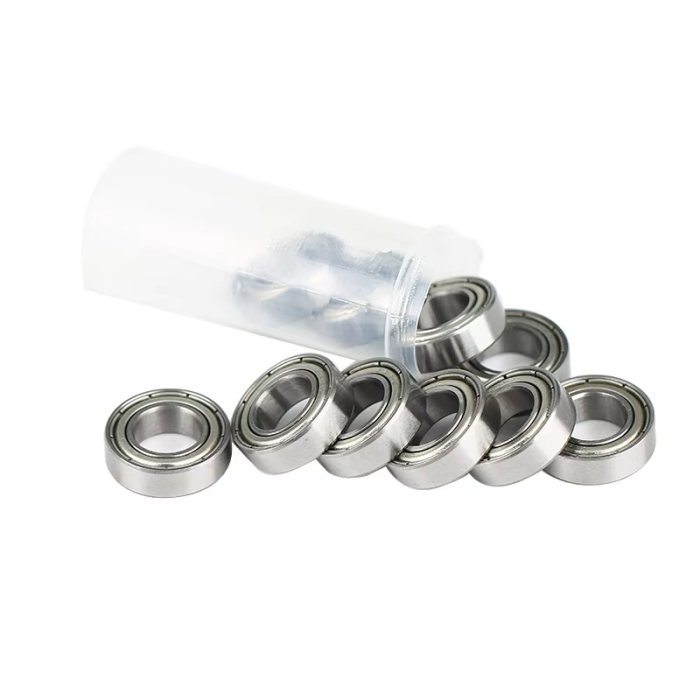

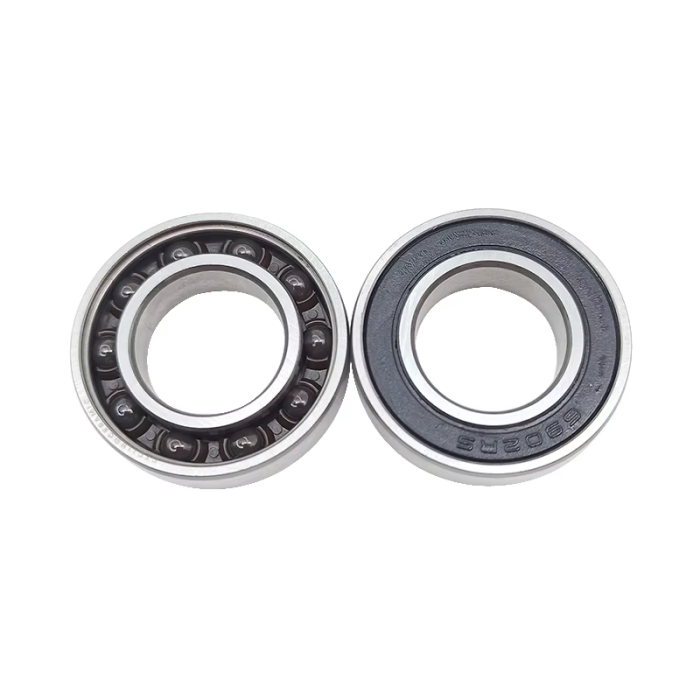

Bike Bearing 61800 61802 61803 61804 61805 61806 Thin Wall Bearing
Brand:JHR Bearing
Material:Gcr15 steel
Model:61800 61802 61803 61804 61805 61806
bicycle hub bearings 61800 61802 61803 61804 61805 61806 6807 61808 61809 61810 Thin Wall Bearing 6800 6802 6803,it is chrome steel material with rubber seals
Bike Bearing 61800 61802 61803 61804 61805 61806 Thin Wall Bearing
1.Bicycle BBs Bearing
Axis (BBs) is the most common special regulation ball (which 163110-2RS and 173110-2RS use up) inside use, there are other types of special regulation ball and conventional ordinary ball, as 6802-2RS, 6803-2RS, 6804-2RS, 6805-2RS, 6902-2RS, 6903-2RS, 6905-2RS so on. 15267,15268,17287,173110,163108,16287,16277,6805N,MR2437, 163110
2.Bicycle Front/Rear Hub Bearing
Hubs (front / rear hubs) using conventional single row ball bearing inside more, and some use special rules single / double row ball bearing. As 6804-2RS, 6805-2RS, 6903-2RS, 6904-2RS, 6905-2RS, currently in Taiwan generally upscale hubs, which use a small size specially tapered roller bearings (mainly for high-end car customization). Front wheel hub bearing to separate the main, rear and some use double row bearings, or two separate parallel use.
608 2RS (chrome) 609 2RS ( chrome) 6000 2RS (stainless steel)
6001 2RS (stainless steel) 6002 2RS (chrome) 6002 RS (stainless steel)
6003 2RS (chrome) 6003 2RS (stainless steel) 6900 2RS (chrome)
6901 2RS (stainless steel) 6902 2RS(stainless steel)
6903 2RS (chrome) 6903 2RS (stainless steel)
Partial model size reference
|
|
size |
|
size |
||||
|
Model |
d(mm) |
D(mm) |
B(mm) |
Model |
d(mm) |
D(mm) |
B(mm) |
|
603 |
3 |
9 |
3 |
6203 |
17 |
40 |
12 |
|
604 |
4 |
12 |
4 |
6204 |
20 |
47 |
14 |
|
605 |
5 |
14 |
5 |
6205 |
25 |
52 |
15 |
|
606 |
6 |
17 |
6 |
6206 |
30 |
62 |
16 |
|
607 |
7 |
19 |
6 |
6207 |
35 |
72 |
17 |
|
608 |
8 |
22 |
7 |
6208 |
40 |
80 |
18 |
|
609 |
9 |
24 |
7 |
6209 |
45 |
85 |
19 |
|
623 |
3 |
10 |
4 |
6210 |
50 |
90 |
20 |
|
624 |
4 |
13 |
5 |
6211 |
55 |
100 |
21 |
|
625 |
5 |
16 |
5 |
6212 |
60 |
110 |
22 |
|
626 |
6 |
19 |
6 |
6213 |
65 |
120 |
23 |
|
627 |
7 |
22 |
7 |
6214 |
70 |
125 |
24 |
|
628 |
8 |
24 |
8 |
6215 |
75 |
130 |
25 |
|
629 |
9 |
26 |
8 |
6216 |
80 |
140 |
26 |
|
6000 |
10 |
26 |
8 |
6300 |
10 |
35 |
11 |
|
6001 |
12 |
28 |
8 |
6301 |
12 |
37 |
12 |
|
6002 |
15 |
32 |
9 |
6302 |
15 |
42 |
13 |
|
6003 |
17 |
35 |
10 |
6303 |
17 |
47 |
14 |
|
6004 |
20 |
42 |
12 |
6304 |
20 |
52 |
15 |
|
6005 |
25 |
47 |
12 |
6305 |
25 |
62 |
17 |
|
6006 |
30 |
55 |
13 |
6306 |
30 |
72 |
19 |
|
6007 |
35 |
62 |
14 |
6307 |
35 |
80 |
21 |
|
6008 |
40 |
68 |
15 |
6308 |
40 |
90 |
23 |
|
6009 |
45 |
75 |
16 |
6309 |
45 |
100 |
25 |
|
6010 |
50 |
80 |
16 |
6310 |
50 |
110 |
27 |
|
6011 |
55 |
90 |
18 |
6311 |
55 |
120 |
29 |
|
6012 |
60 |
95 |
18 |
6312 |
60 |
130 |
31 |
|
6013 |
65 |
100 |
18 |
6313 |
65 |
140 |
33 |
|
6014 |
70 |
110 |
20 |
6314 |
70 |
150 |
35 |
|
6015 |
75 |
115 |
20 |
16000 |
10 |
26 |
7 |
|
6016 |
80 |
125 |
22 |
16001 |
12 |
28 |
7 |
|
6017 |
85 |
130 |
22 |
16002 |
15 |
32 |
8 |
|
6018 |
90 |
140 |
24 |
16003 |
17 |
35 |
8 |
|
6019 |
95 |
145 |
24 |
16004 |
20 |
42 |
8 |
