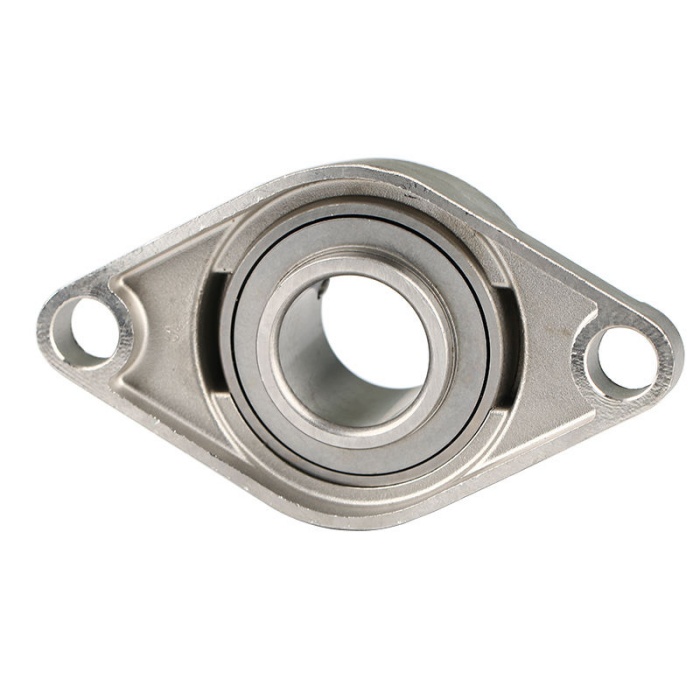

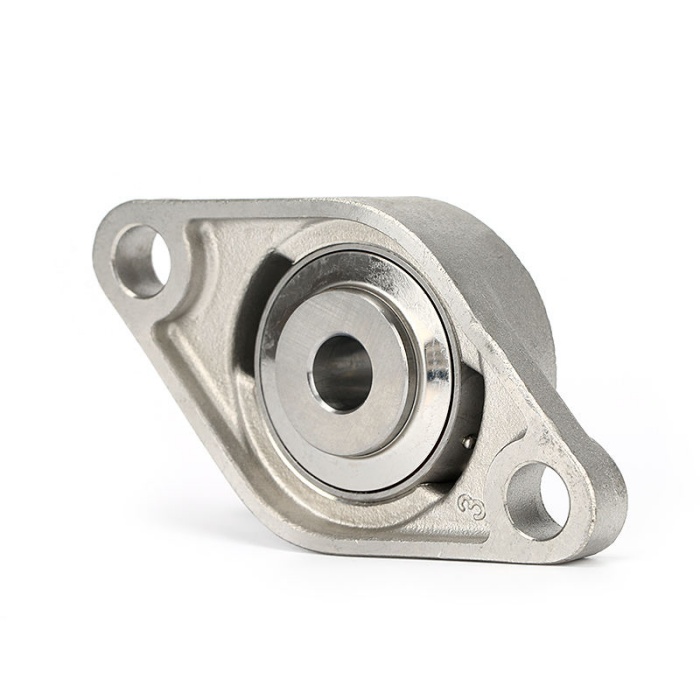

30mm Two Bolt Flange Unit Bearing Stainless Steel Pillow Block Bearing SUCSFL206-30mm
Brand:JHR Bearing

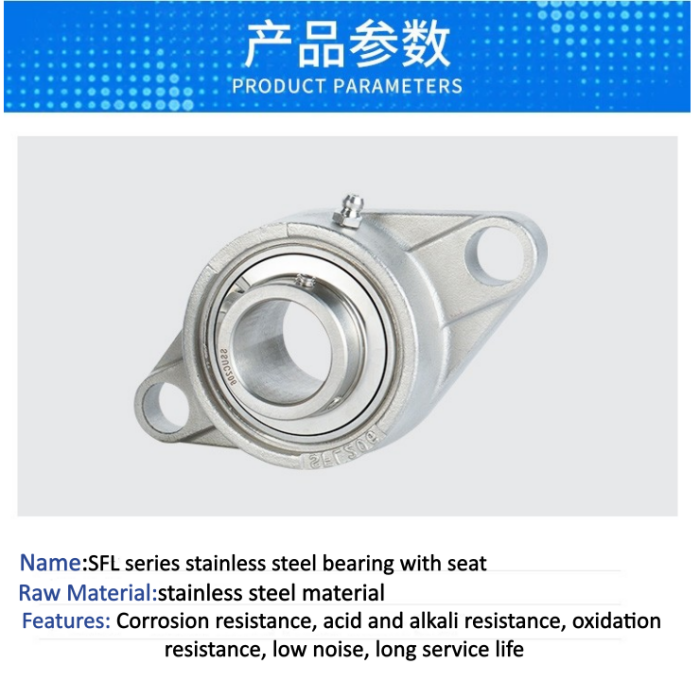

Material:Stainless Steel Material
Bore Diameter:10 mm to 100 mm Outer Diameter:Standard and customized sizes

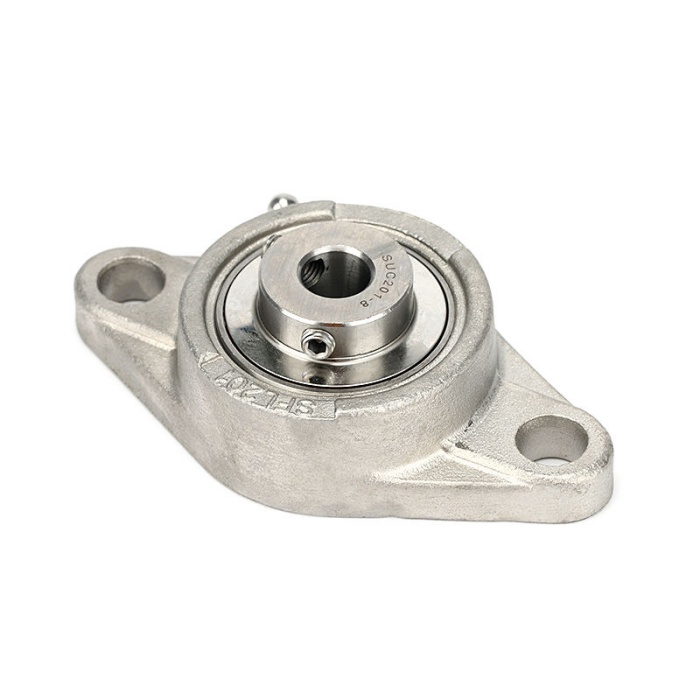

SKU: 12mm Shaft Two Bolt Flange Pillow Block Bearing SUCFL201
Its structure adopts double-sided sealed outer spherical ball bearings, and the truncated spherical surface of the outer ring cooperates with the concave spherical surface of the bearing seat to achieve automatic centering

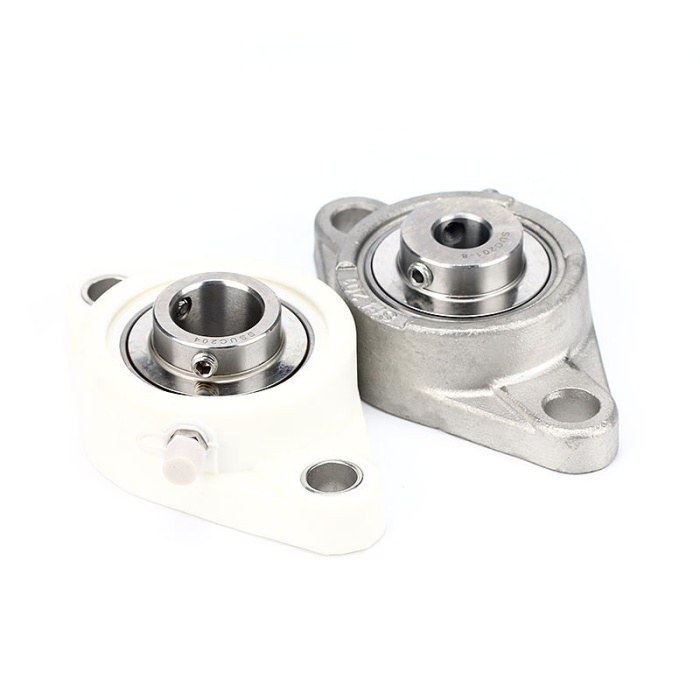

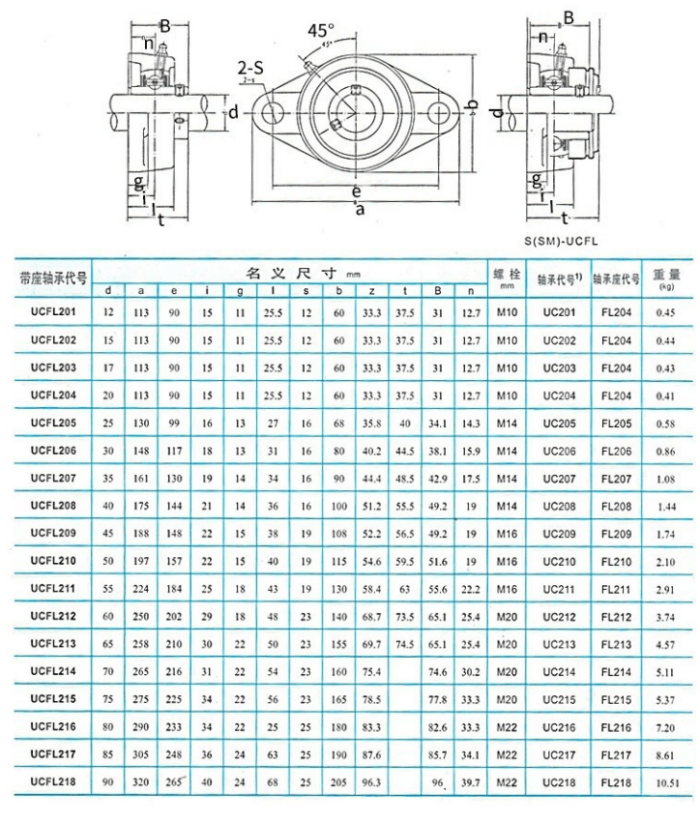

The UCFL series bearing is a type of outer spherical ball bearing with a seat, belonging to the UCFLU type outer spherical ball bearing with a diamond shaped seat top wire The bearing consists of a chromium steel GCR15 bearing body, rubber seals, and a carbon steel/stainless steel/plastic housing, suitable for straight shaft installation.
This model adopts a single row ball bearing structure, equipped with a locking screw type insertion unit, with a working temperature range of -20 to+120 ° C, tolerance levels covering ABEC1 and ABEC3, and clearance levels including C0, C2, and C3. Equipped with anti pollution sealing design and maintenance free features, it can withstand medium to heavy loads. Mainly used in screening equipment, excavators, machine tool spindles, large agricultural machinery, and construction machinery fields
