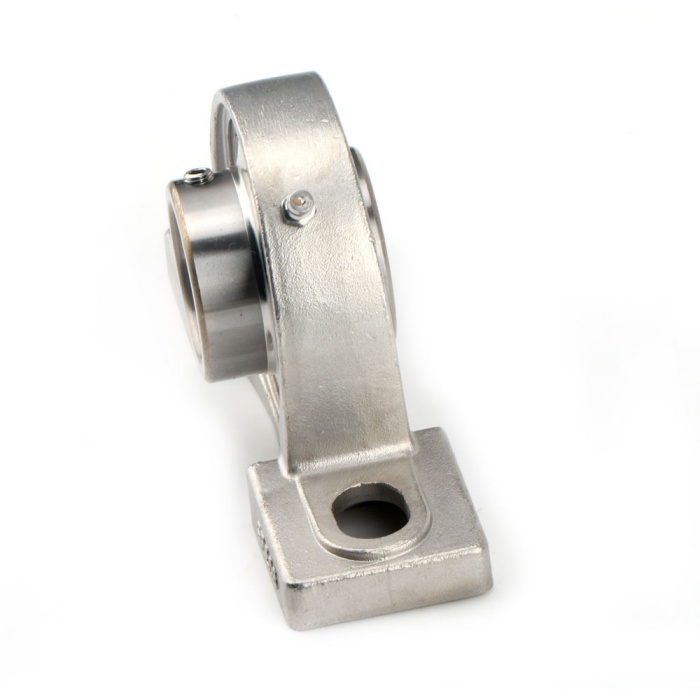

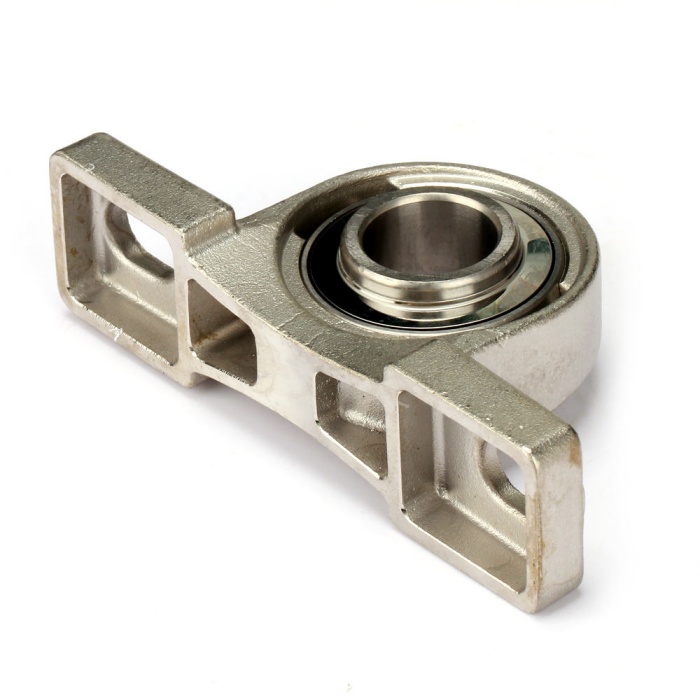

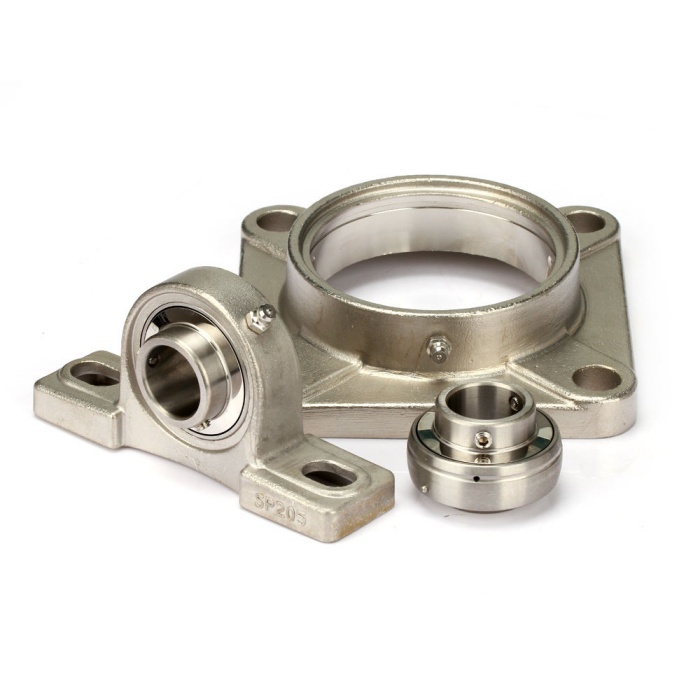

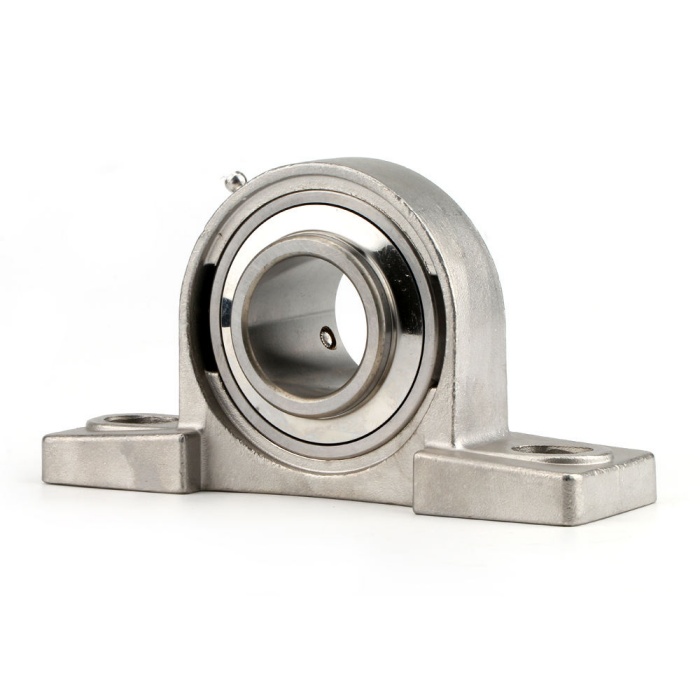

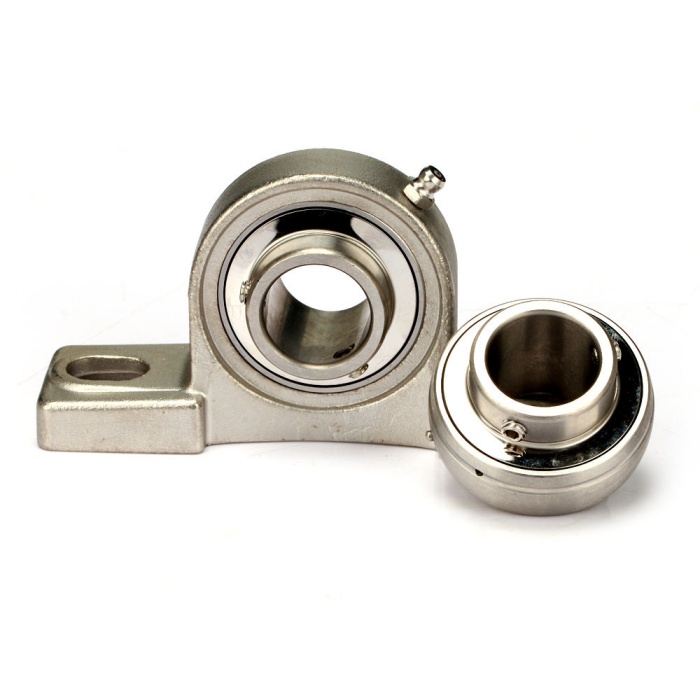

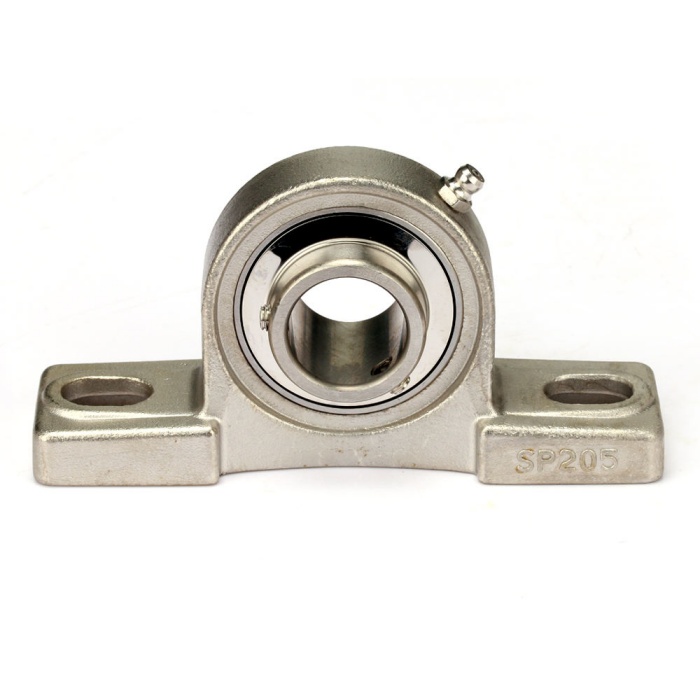

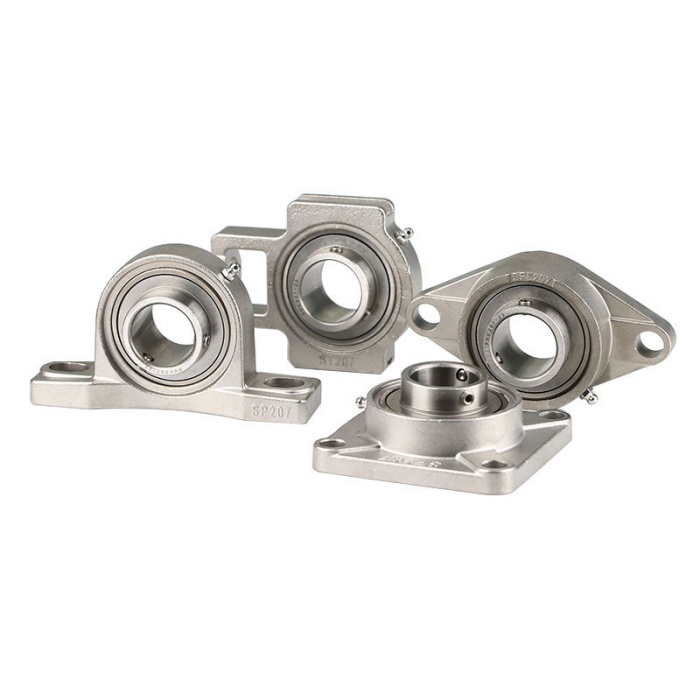

Stainless Steel Pillow Block Bearing SSUCP204 SUCP204 SUC204
Brand:JHR Bearing
Material:Stainless Steel Material
Bore Diameter:10 mm to 100 mm Outer Diameter:Standard and customized sizes
SKU:Stainless Steel Pillow Block Bearing SSUCP204 SUCP204 SUC204
Pillow Block Bearing has solid base housing and insert bearing,offer reliable and efficient solutions for various applications,ensuring optimal performance and durability.
UCP204 bearing is an industrial standard component designed by integrating an outer spherical ball bearing and a cast bearing seat. It adopts a spherical outer surface structure to achieve automatic centering function Its inner diameter is 20mm, outer diameter is 33.3mm, and total height is 127mm. It is suitable for various mechanical installation scenarios through top wire or eccentric sleeve fixation. This model is suitable for supporting structures in industrial fields such as mining, metallurgy, machine tools, and engineering machinery, and has technical characteristics such as perfect sealing and strong load-bearing capacity.
Structural Design
Adopting a dual integrated structure of outer spherical bearings and cast bearing seats, the inner ring width is greater than the outer ring to form an axial positioning reference. The outer spherical surface is matched with the spherical inner hole of the bearing seat, allowing for a ± 2 ° adjustment angle to compensate for installation errors The sealing structure adopts double-sided contact seals
Technical Specifications
Base height H2: 83mm Installation hole distance A: 48mm Rated dynamic load 12.3kN, static load 6.65kN, ultimate speed 3400r/min (grease lubrication condition)
Outer diameter (H): 33.3mm
Total height (L): 127mm
Installation dimensions: A=38mm, B=31mm, H2=65mm
Product Features
Compared with ordinary deep groove ball bearings, it has three technical advantages:
Heart regulating function reduces eccentric load damage caused by axial bending
Integrated structure reduces installation complexity
Cast iron bearing seat enhances radial load bearing capacity
Installation specifications
The mating surface of the shaft must meet the h6 level tolerance and be kept clean. Follow the steps below during installation:
1. Remove burrs and rust from the surface of the shaft
2. Push the bearing axially into the installation position
3. Use a torque wrench to tighten the top thread (recommended torque of 12N · m)
4. Inject lithium based grease to 30% of the cavity volume. It is strictly prohibited to directly hammer the outer ring or bearing seat to avoid structural deformation
