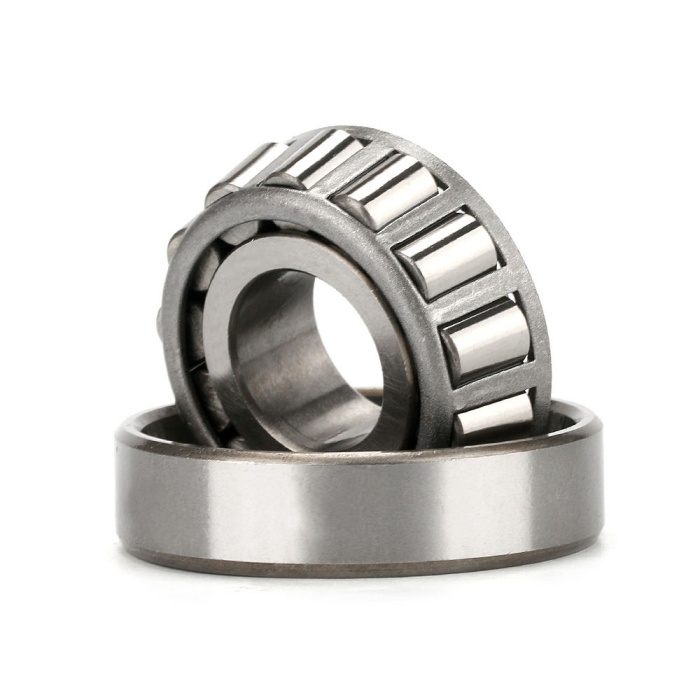

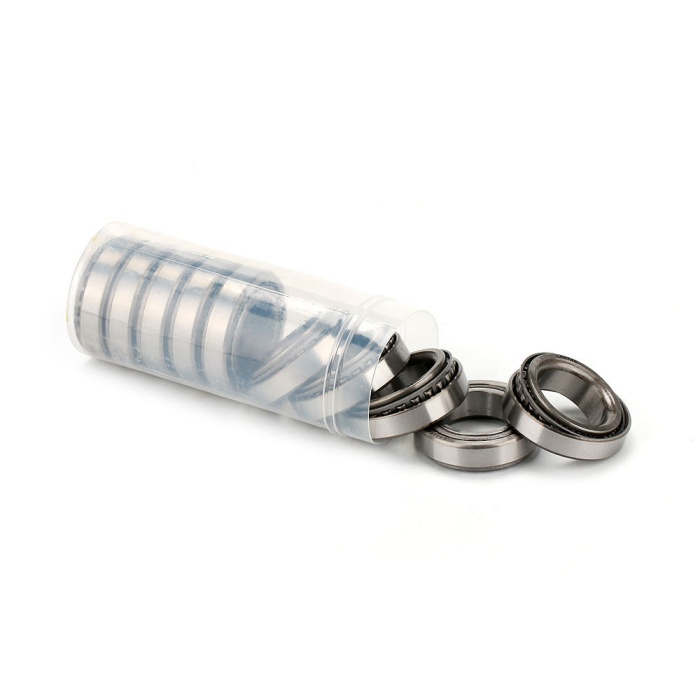

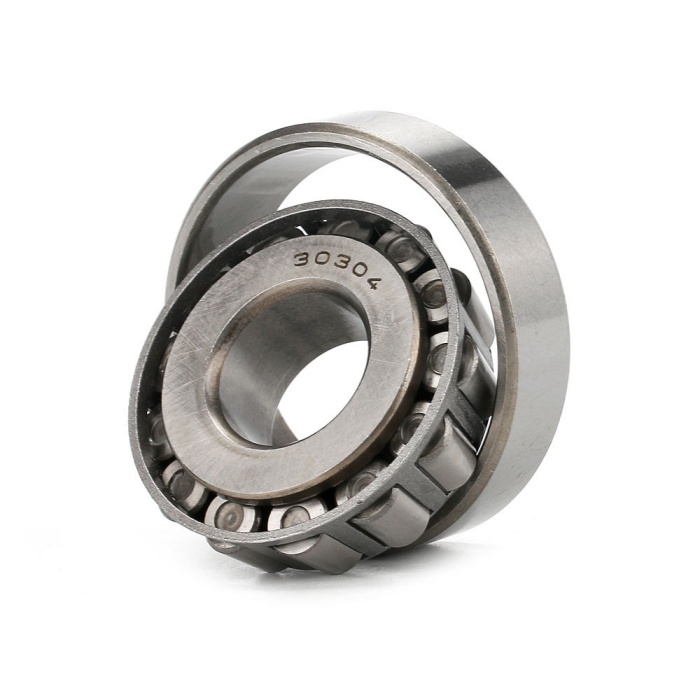

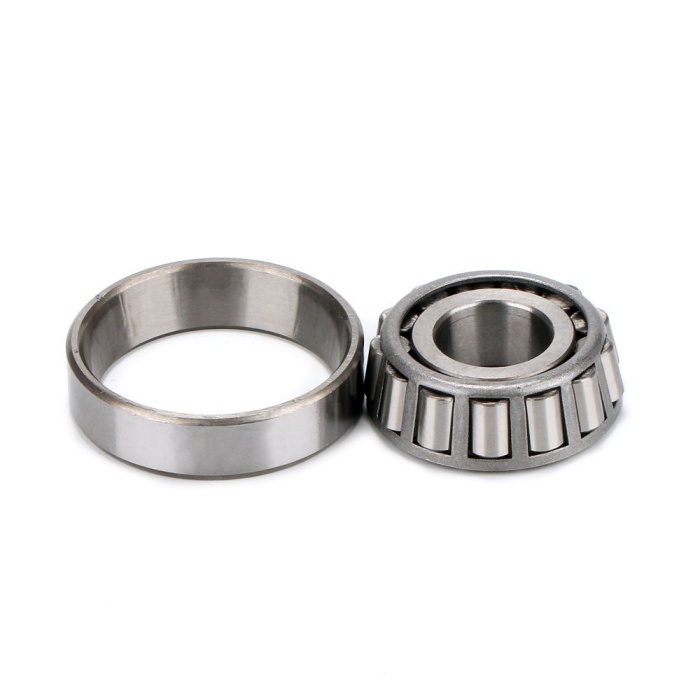

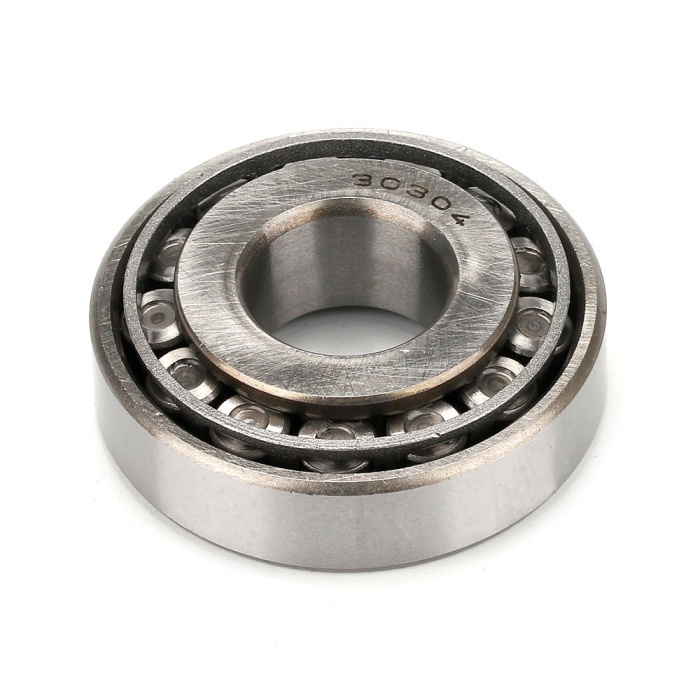

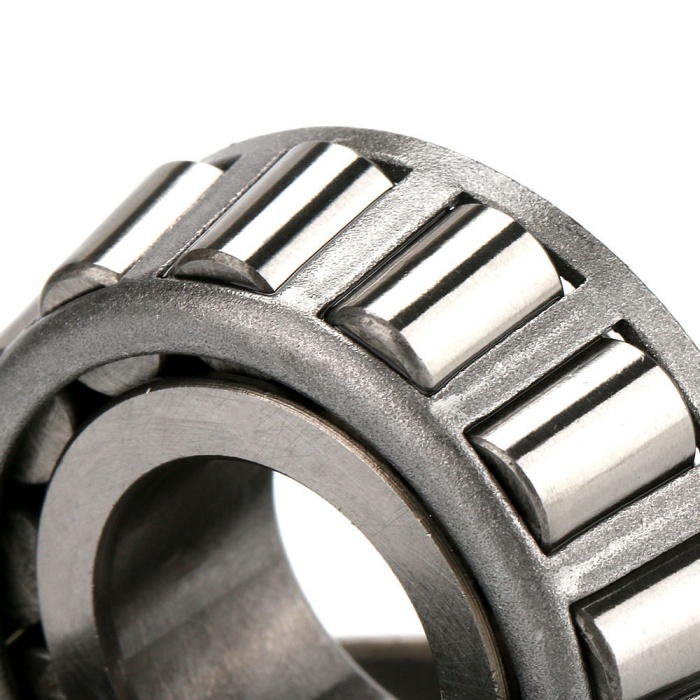

Agricultural Machinery Taper Roller Bearing 30304 30305

Brand:JHR Bearing

Material: Chrome Steel Material

Model: 30304 30305 30306 30307

SKU:Agricultural Machinery Taper Roller Bearing 30304 30305

Taper roller bearing are suitable for bearing heavy loads and impact loads.except for single row,also Including double row bearing,and four row bearing.

[email protected]

JHR Bearing tapered roller bearing
Model No.	Size(mm)			Weight
Model No.	d	D	B	(KG)
L45449/10	29	50.292	14.224	0.118
M12649/10	21.43	50.005	17.526	0.17
LM11749/10	17.462	28.5	14.605	0.026
LM11949/10	19.05	45.237	15.49	0.122
L68149/10	34.981	59.131	15.875	0.166
LM67048/10	31.75	59.13	15.88	0.18
25590/20	45.618	83.058	23.876	0.556
2788/20	38.1	76.2	23.81	0.455
387/382	57.15	98.425	21	0.596
368/362	50.8	88.9	20.638	0.514
LM48548/10	34.925	65.088	18.034	0.26
11590/20	15.875	42.862	14.288	0.095
09067/195	19.05	49.225	19.845	0.176
1280/20	22.225	57.15	22.225	0.286
L44649/10	26.988	50.292	14.224	0.126
15123/245	31.75	62	19.05	0.244
M88048/10	33.338	68.262	22.225	0.375
M86649/10	30.162	64.292	21.443	0.341
25877/21	34.925	73.025	23.8	0.461
2580/20	31.75	66.421	25.4	0.4
M12749/10	22	45.237	15.494	0.116
3579/25	42.862	87.312	30.162	0.784
3780/20	50.8	93.264	30.162	0.87
LM29749/10	38.1	65.088	18.034	0.233
JL69349/10	38	63	17	0.186
M807046/10	50.8	104.775	36.512	1.49
M801346/10	38.1	82.55	29.37	0.76
LM300849/10	41	68	17.5	0.242
28985/20	60.325	101.6	25.4	0.79
29587/20	63.7	107.95	25.4	0.9
29590/20	66.675	107.95	25.4	0.84
39590/20	66.675	112.712	30.162	1.13
28680/20	55.562	97.63	24.608	0.769
LM102949/10	45.242	73.431	19.558	0.31
LM104948/10	50	82	21.5	0.41
LM501349/10	41.275	73.431	19.558	0.32
LM603049/11	45.242	77.788	19.842	0.36
HM218248/10	89.975	146.975	40	2.36
HM518445/10	88.9	152.4	39.688	2.83
HM212049/10	66.675	122.238	38.1	1.8 5
