Bearing Tightening Lock Sleeve H205 H206 H315 H3064 H3068
Bearing Tightening Lock Sleeve H205 H206 H315 H3064 H3068
Brand:JHR Bearing
Material:Chrome Steel Material
Bore Diameter:10 mm to 100 mm Outer Diameter:Standard and customized sizes
Load Capacity:Radial and axial load handling
SKU:H205 H206 H207 H208 H209 H210 H211 H310 H311 H312 H313 H314 H315 H3064 H3068 H3072 H3076 H3080

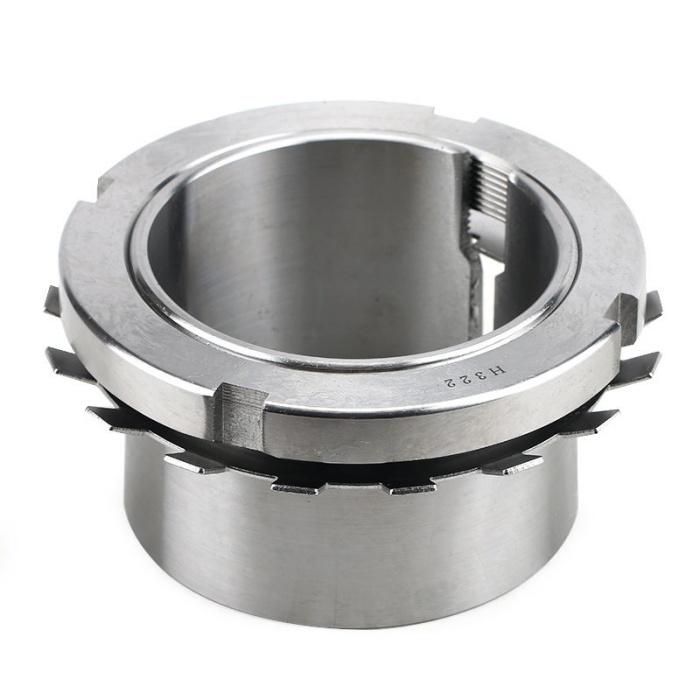

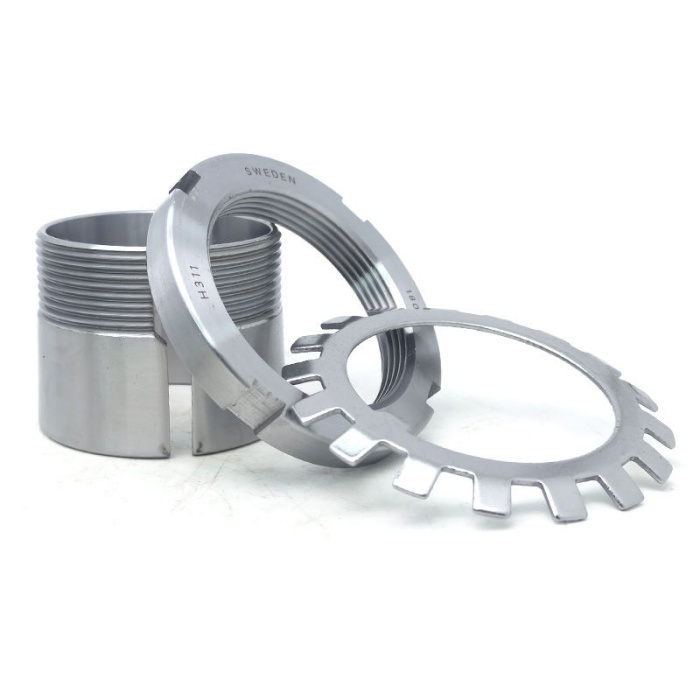

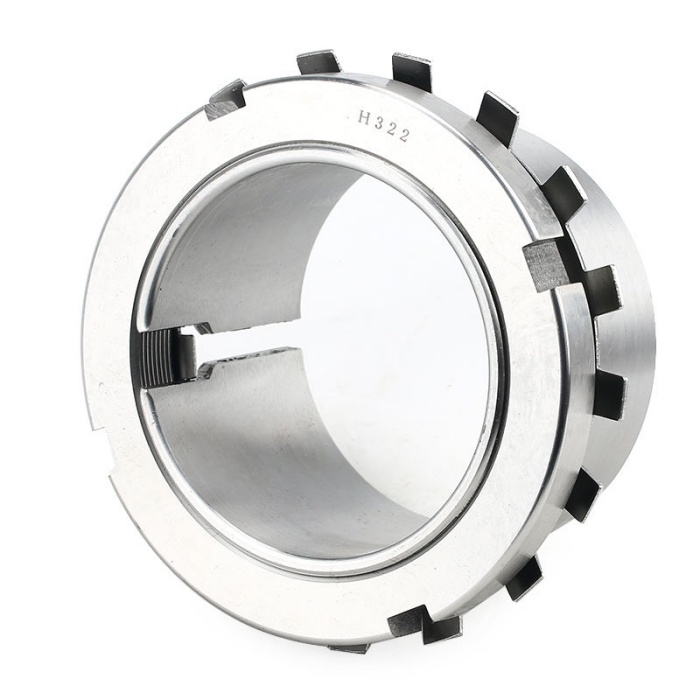

Adaptor Sleeves are used to locate bearings with a tapered bore onto a cylindrical shaft.Helps ensure precise alignment between bearings and cylindrical shafts.
Suffix description
CA

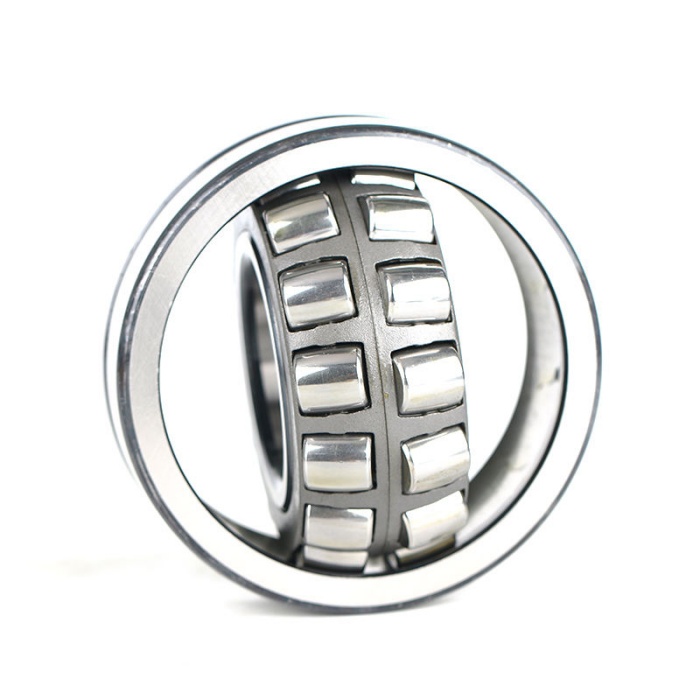

Bearings With Symmetrical Rollers And Retaining Ribs. The Cage Is A One-Piece, Double Pronged Machined Cage Of Brass
W33
Lubrication Groove And Three Holes In Bearing Outer Ring
Weight and Dimensions
- Inner (d) 50MM
- Outer (D) 90MM
- Width (B) 23MM
- Inner (d) Inch1.9685
- Outer (D) Inch3.5433
- Width (B) Inch0.9055
- Weight (kg)0.64
-

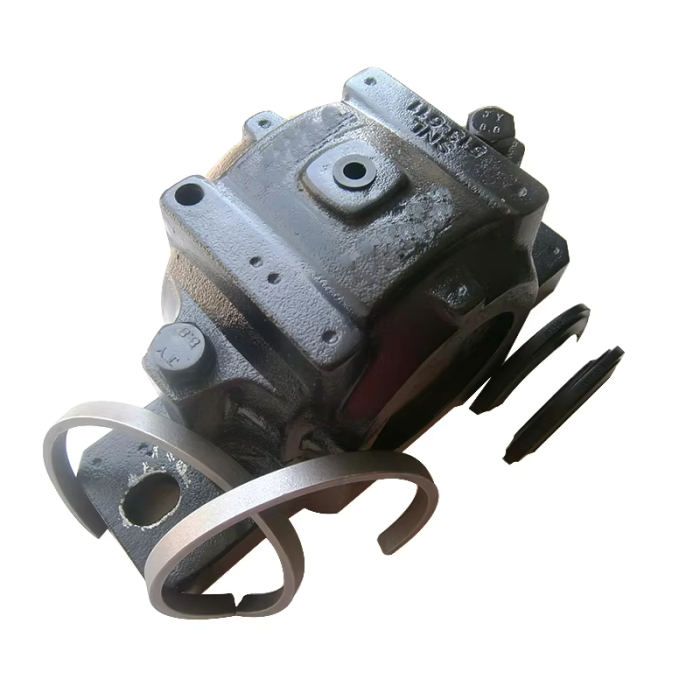

| Bearing No. | Adapter No. | Housing No. |
| 23220 CCK/W33 | H.2320 | SNH.520-617 |
| 23030 CCK/W33 | H.3030 | SN.3030 |
| 23222 CCK/W33 | H.2322 | SNH522-619 |
| 23232 CCK/W33 | H.2332 | SNH.532 |
| 23228 CCK/W33 | H.2328 | SNH.528 |
| 23034 CCK/W33 | H.3034 | SN.3034 |
| 23040 CCK/W33 | H.3040 | SN.3040 |
| 22213 EK | H.313 | SNH.513-611 |
| 22216 EK | H.316 | SNH.516-613 |
| 23218 CCK/W33 | H.2318 | SNH.518-615 |
| 22217 EK | H.317 | SNH.517 |
| 23224 CCK/W33 | H.2324 | SNH.524-620 |
| 22215 EK | H.315 | SNH 515-612 |
