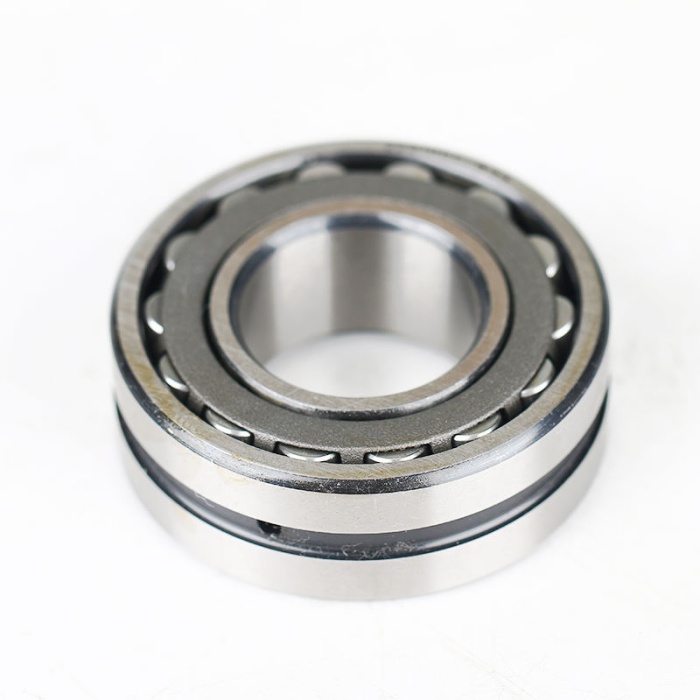

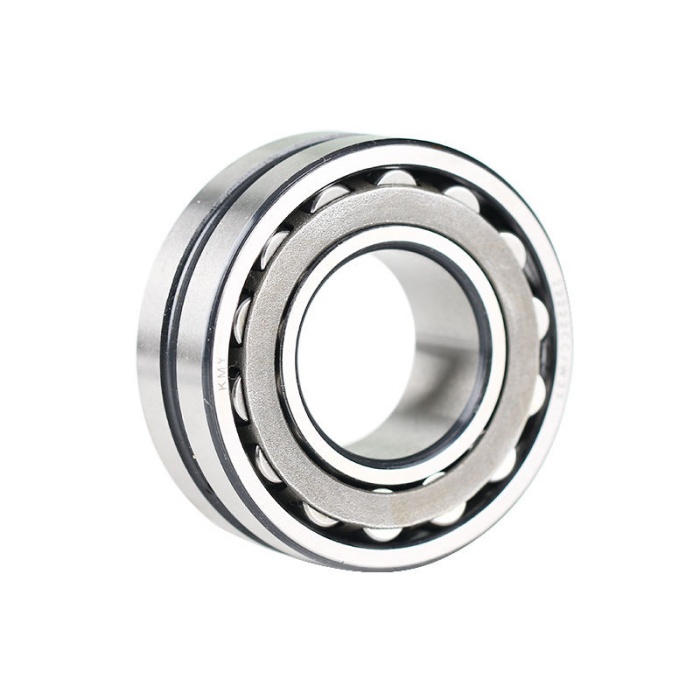

Taper Hole Cylindrical Spherical Roller Bearing 22210CA/W33

Brand:JHR Bearing

Material:Chrome Steel Material

Bore Diameter:10 mm to 100 mm Outer Diameter:Standard and customized sizes

Load Capacity:Radial and axial load handling

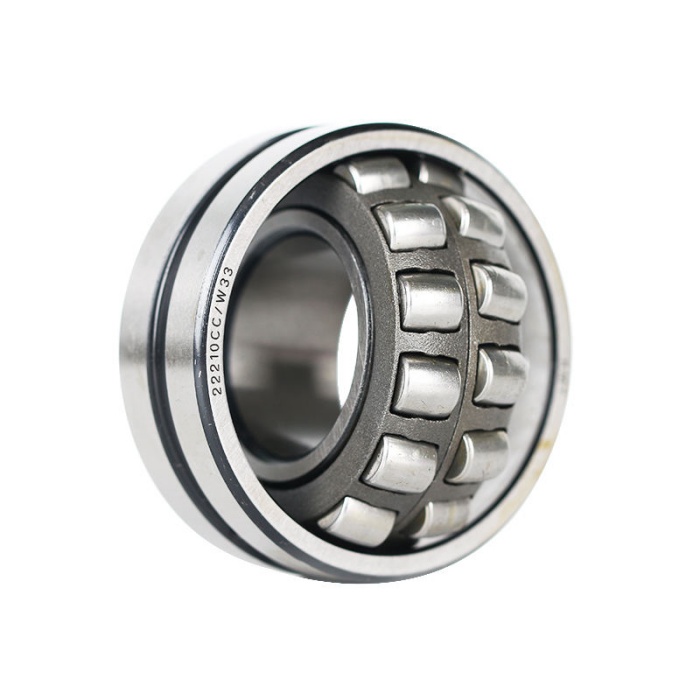

SKU: 22210CA/W33 22210CC/W33 22210E 22210CAK 22210CCK 22210MB 22210CC

Self-aligning roller bearing are divided into: cylindrical inner hole and cone hole.They are self-aligning and accommodate misalignment and shaft deflections.

[email protected]

Suffix description

Bearings With Symmetrical Rollers And Retaining Ribs. The Cage Is A One-Piece, Double Pronged Machined Cage Of Brass

W33

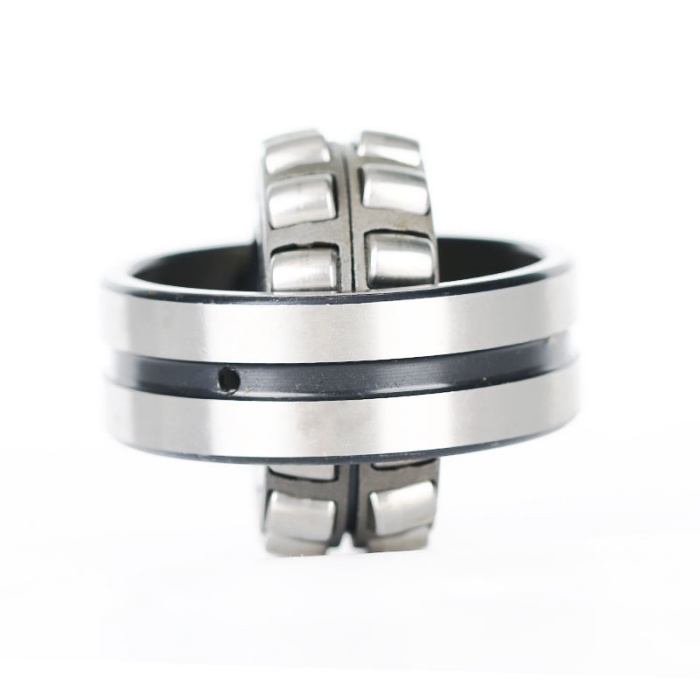

Lubrication Groove And Three Holes In Bearing Outer Ring

Weight and Dimensions

Inner (d) 50MM
Outer (D) 90MM
Width (B) 23MM
Inner (d) Inch1.9685
Outer (D) Inch3.5433
Width (B) Inch0.9055
Weight (kg)0.64

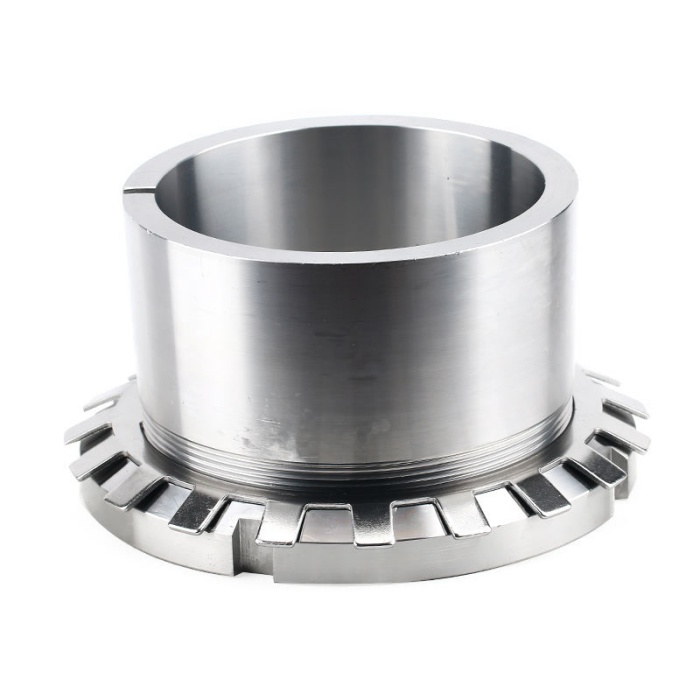

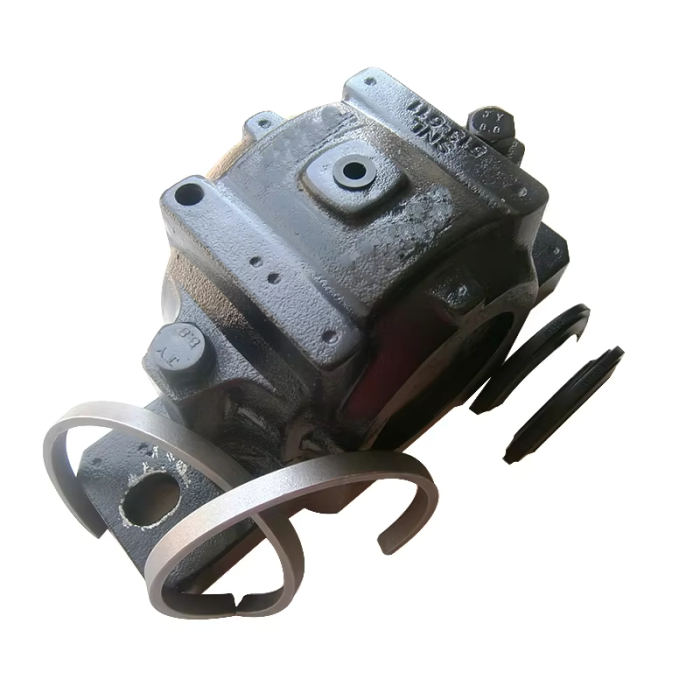

Bearing No.	Adapter No.	Housing No.
23220 CCK/W33	H.2320	SNH.520-617
23030 CCK/W33	H.3030	SN.3030
23222 CCK/W33	H.2322	SNH522-619
23232 CCK/W33	H.2332	SNH.532
23228 CCK/W33	H.2328	SNH.528
23034 CCK/W33	H.3034	SN.3034
23040 CCK/W33	H.3040	SN.3040
22213 EK	H.313	SNH.513-611
22216 EK	H.316	SNH.516-613
23218 CCK/W33	H.2318	SNH.518-615
22217 EK	H.317	SNH.517
23224 CCK/W33	H.2324	SNH.524-620
22215 EK	H.315	SNH 515-612
