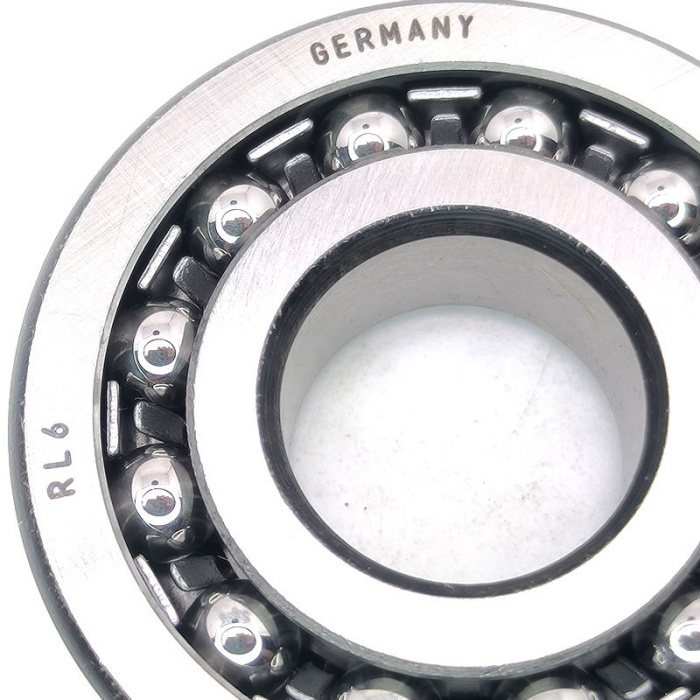

Inch Self-aligning Ball Bearing RL4 RL5 RL6 RL7 RL8 RL9 RL10

Brand:JHR Bearing

Material: Chrome Steel Material

Bore Diameter:10 mm to 100 mm Outer Diameter:Standard and customized sizes

Load Capacity:Radial and axial load handling

SKU: RL4 RL5 RL6 RL7 RL8 RL9 RL10

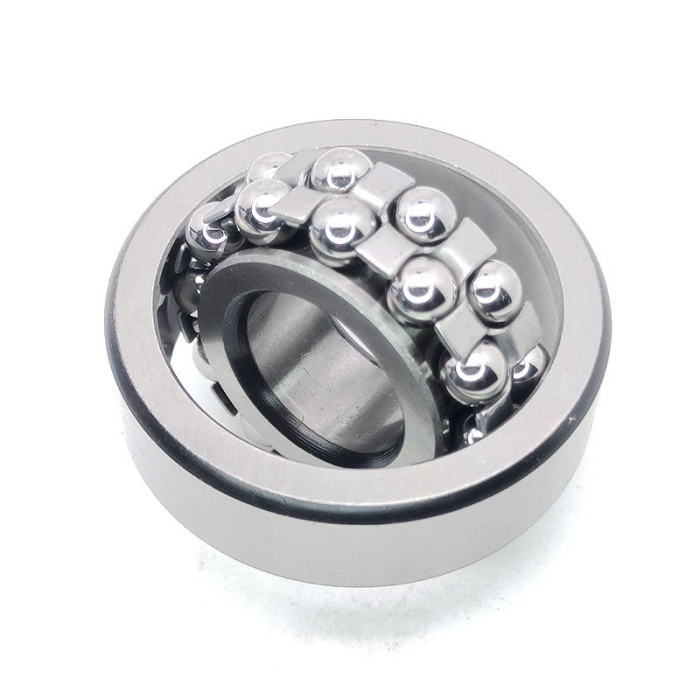

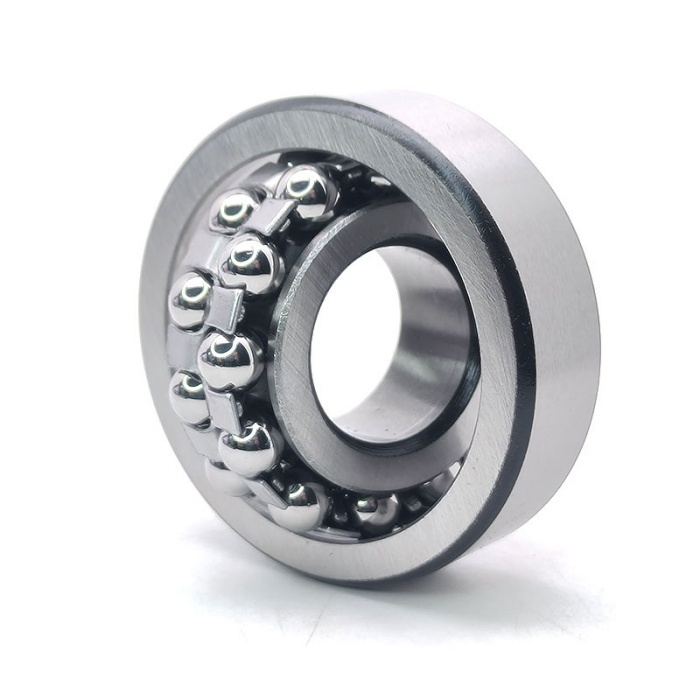

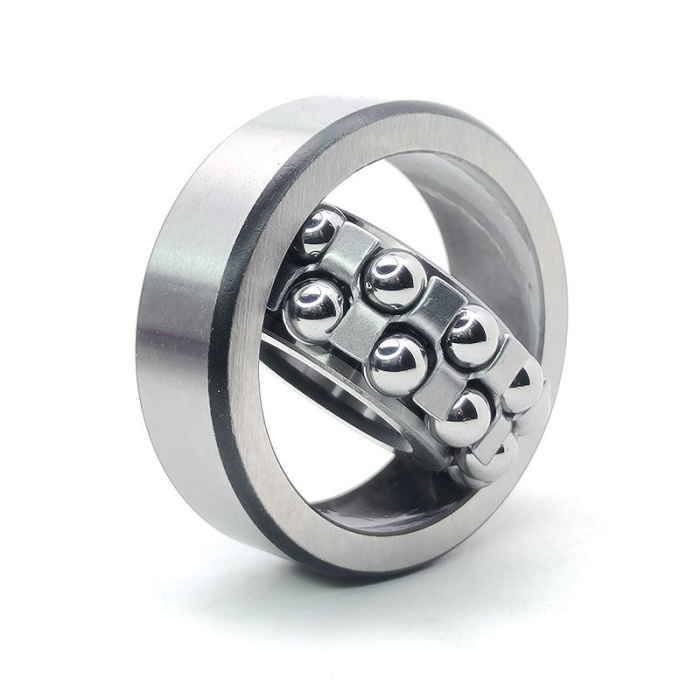

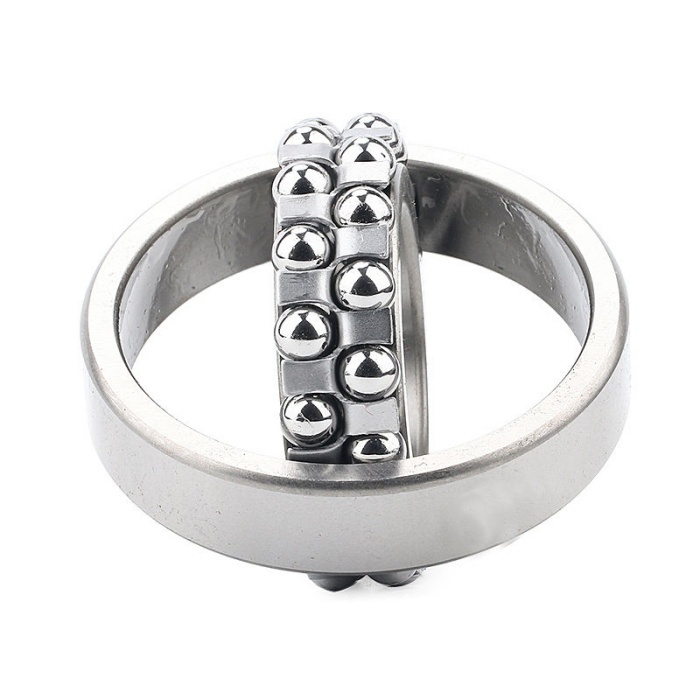

Self-Aligning Ball Bearings have two rows of balls and a common concave raceway in the outer ring,which allows them to self-align and handle angular misalignments.

[email protected]

Bearing series	Model Number	d(mm)	D(mm)	B(mm)	Bearing series	Model Number	d(mm)	D(mm)	B(mm)
1200 series	1200	10	30	9	2200 series	2200	10	30	14
	1201	12	32	10		2201	12	32	14
	1202	15	35	11		2202	15	35	14
	1203	17	40	12		2203	17	40	16
	1204	20	47	14		2204	20	47	18
	1205	25	52	15		2205	25	52	18
	1206	30	62	16		2206	30	62	20
	1207	35	72	17		2207	35	72	23
	1208	40	80	18		2208	40	80	23
	1209	45	85	19		2209	45	85	23
	1210	50	90	20		2210	50	90	23
	...	...	...	...		...	...	...	...
1300 series	1300	10	35	11	2300 series	2303	17	47	19
	1301	12	37	12		2304	20	52	21
	1302	15	42	13		2305	25	62	24
	1303	17	47	14		2306	30	72	27
	1304	20	52	15		2307	35	80	31
	1305	25	62	17		2308	40	90	33
	1306	30	72	19		2309	45	100	36
	1307	35	80	21		2310	50	110	40
	1308	40	90	23		2311	55	120	46
	1309	45	100	25		2312	60	130	46
	1310	50	110	27		2313	65	140	48
	...	...	...	...		...	...	...	...
