About this item

• Bearing Model: AXK2035 (I.D.=20mm, O.D.=35mm, Thickness=2mm); Washer Model: AS2035

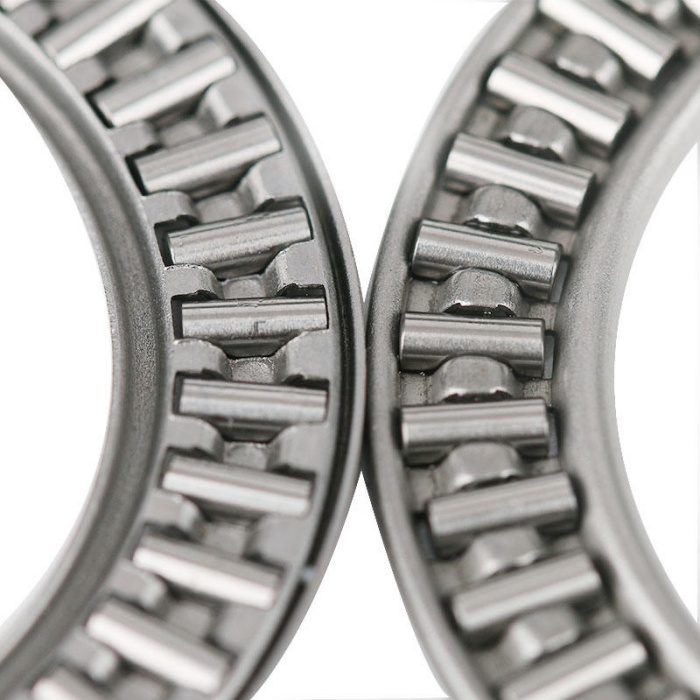

• Material: Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration and noise

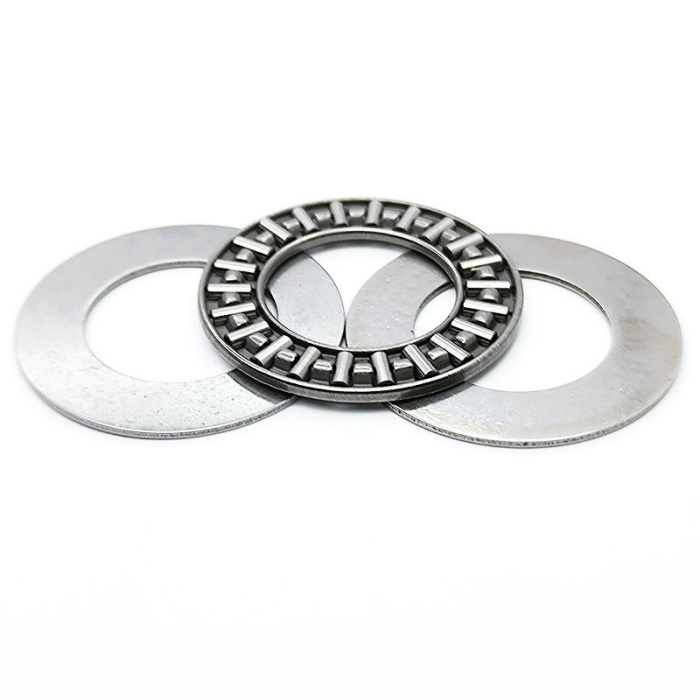

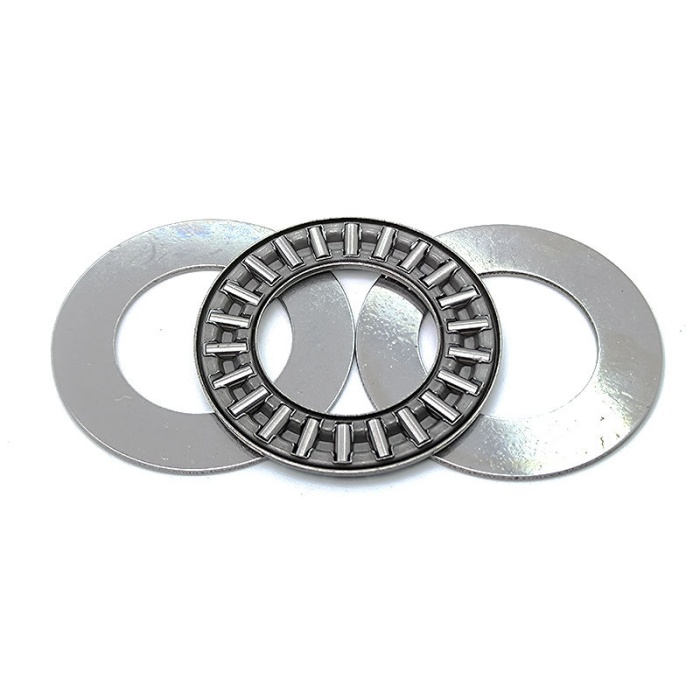

• Features: Needle Roller Thrust Bearings can accommodate axial loads in one direction only.Combined with 2 washers for applications where adjacent machine components cannot serve as raceways.
• Capability:45.6kN Static Load Capacity, 12.9kN Dynamic Load Capacity, 8500RPM Maximum Rotational Speed
• Package contents:2 x bearing,4 x bearing washers.Product Description

Specification:

Bearing Modle: AXK2035
Bearing Washer Modle: AS2035
Needle Roller Meterial: Chromium Steel (GCr15)
Cage Meterial: ST13 Steel

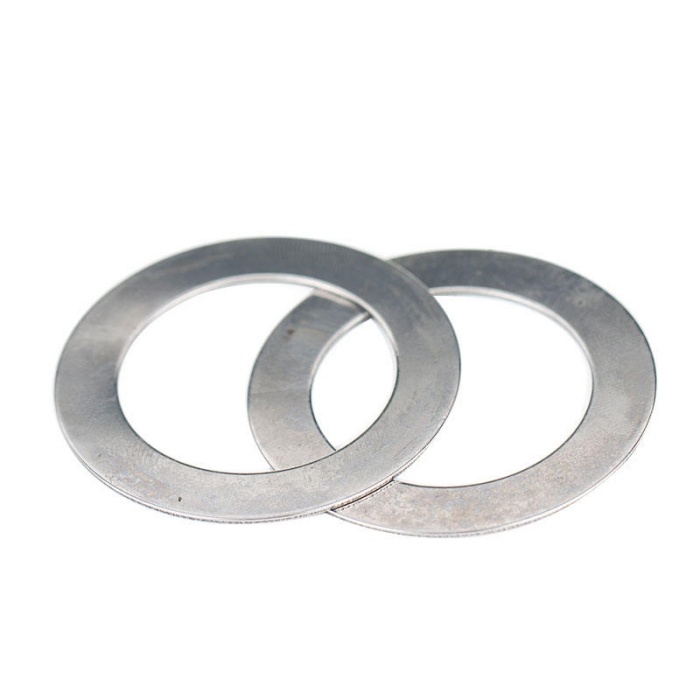

Bearing Washer Meterial: 65Mn Spring Steel
Bore Diameter (d): 20mm
Outside Diameter (D): 35mm
Bearing Thickness (T1): 2mm
Washer Thickness (T2): 1mm (Approx.)
Dynamic Load Capacity (Cr): 12.9kN
Static Load Capacity (Cor): 45.6kN
Limiting Speed (Oil): 8500RPM


Package Contents:

2 x Bearings
4 x Bearing Washers
